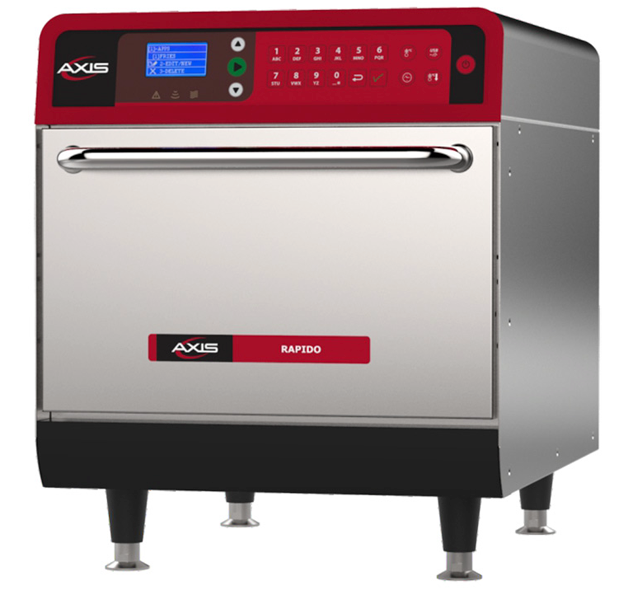

AXIS RAPIDO Convection Oven
SUBMIT YOUR INTEREST
SPECS
ELECTRICAL SPECS:
Ensure that the electrical characteristics of the building network are in accordance with the technical specifications located on the data badge located on rear panel of the unit. The outlet should be located no more than 6ft / 1.8m away from the unit. This unit must be properly grounded to avoid electrical shock. This unit is equipped with a 3-prong plug. This plug must be connected to a properly installed and grounded outlet. In the event of an electrical short, properly grounding the unit reduces the risk of electrical shock by grounding the electrical current. The building electrical is the customer’s responsibility.
DIMENSIONS:
| Oven Height | 25” | 636mm |
|---|---|
| Oven Width | 20,9” | 532mm |
| Oven Depth | 31.7” | 806mm |
| Oven Weight | 194 lbs | 88kg |
|
Up to 80 recipes with 6 steps each USB port to upload/download recipes Easy to clean Adjustable temperature from 86°F (30°C) to 536°F (280°C) User Friendly Interface Cool to the touch exterior Certified ventless with easy removable catalytic converter Variable-speed impingement airflow Independently controlled top and bottom heaters Ventless side panels allow for zero side clearance installation Allows the use of metal pans Constructed from AISI430 (exterior) and AISI304 (interior) stainless steel Warranty – 1 year parts and labor |
Download
MANUAL:
AXIS
RAPIDO
SUBMIT YOUR INTEREST
ENTER YOUR INFO AND ONE OF OUR TALENTED FOOD SERVICE CONSULTANTS WILL GET BACK TO YOU.
Download
SPEC SHEET:
AXIS
RAPIDO
